Kawasaki Ninja Service Manual: Self-Diagnosis System

Kawasaki Ninja Service Manual / Self-Diagnosis System

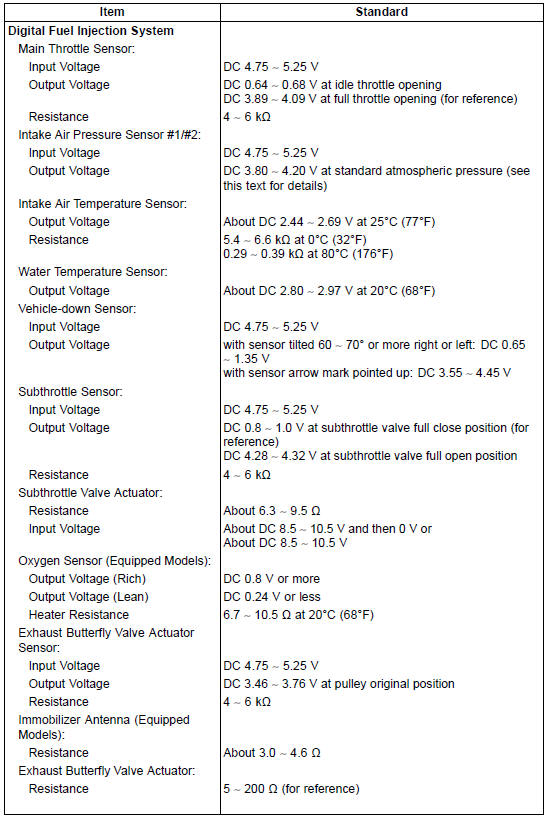

Specifications

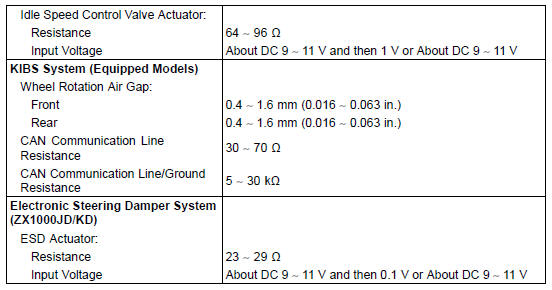

Specifications


Specifications


Fuse Inspection
Remove the fuse. Inspect the fuse element. If it is blown out, replace the fuse. Before replacing a blown fuse, always check the amperage in the affected circuit. If the amperage is equal to ...

Special Tools
Fork Oil Level Gauge: 57001-1290 Vacuum Gauge: 57001-1369 Hand Tester: 57001-1394 Throttle Sensor Setting Adapter #1: 57001-1400 Peak Voltage Adapter: 57001-1415 Needle Adapter Set: 57 ...

Other materials:

Air Cleaner Housing Assembly
Install the ducts to the air cleaner housing. Fit the projections [A] of the duct into the slits [B] on the air cleaner housing. Tighten the screws [A]. Torque - Air Cleaner Housing Duct Screws: 1.1 N·m (0.11 kgf·m, 10 in·lb) Install: Air Cleaner Gasket [A] Duct [B] ...

CAN Communication (Transmission)/CAN Bus OFF Monitor Inspection (Service Code b 57) CAN Communication (Reception) Monitor Inspection (Service Code b 58)
Remove: Seat (see Seat Removal in the Frame chapter) Immobilizer (Equipped Models)/Kawasaki Diagnostic System Connector Cap [A] Measure the CAN communication line resistance. Immobilizer (Equipped Models)/Kawasaki Diagnostic System Connector [A] GY/BL Terminal [B] LB Ter ...

Camshaft Removal
Remove: Cylinder Head Cover (see Cylinder Head Cover Removal) Crankshaft Sensor Cover (see Crankshaft Sensor Removal in the Electrical System chapter) Using a wrench on the timing rotor bolt [A], turn the crankshaft clockwise until the line [B] (TDC mark for #1,4 pistons) on the timin ...
