Water Temperature Sensor Removal/Installation

Remove the throttle body assy (see Throttle Body Assy Removal in the Fuel System (DFI) chapter).
Drain the coolant (see Coolant Change in the Periodic Maintenance chapter).

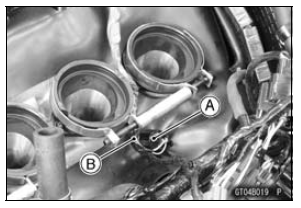

Remove: Connector [A] Water Temperature Sensor [B] with O-ring
Replace the O-ring with a new one and apply grease to it.
Tighten: Torque - Water Temperature Sensor: 12 N·m(1.2 kgf·m, 106 in·lb)
Fill the engine with coolant and bleed the air from the cooling system (see Coolant Change in the Periodic Maintenance chapter).
