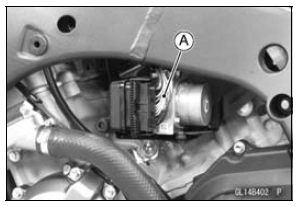

The solenoid valve is built in the KIBS Hydraulic Unit [A].
Therefore the solenoid valve cannot be checked directly.
If any of these service codes appears even if all checks are ended, replace the KIBS hydraulic unit
If the service code does not appear, the KIBS system normal (temporary failure).
KIBS Solenoid Valve Relay Inspection (Service Code b 19)Tightening Sequence
Generally, when installing a part with several bolts, nuts,
or screws, start them all in their holes and tighten them to
a snug fit. Then tighten them according to the specified sequence
to prevent case warpage or deformation which can
lead to malfunction. Conversely when loosening the bolts,
n ...
Clutch Plate, Wear, Damage Inspection
Visually inspect the friction and steel plates for signs of
seizure, overheating (discoloration), or uneven wear.
Measure the thickness of each friction plate [A] at several
points.
If any plates show signs of damage, or if they have worn
past the service limit, replace them with new on ...
Oil Pump Drive Gear Shaft Installation
Apply molybdenum disulfide grease [A] to the oil pump
drive gear shaft.
Apply molybdenum disulfide oil solution to the followings.
Transmission Case [B]
Crankcase [C]
Install the oil pump drive gear shaft and washer [D] as
shown in the figure.
Install the new circlip [E] into the ...
