Kawasaki Ninja Service Manual: Intake Air Temperature Sensor Installation

Intake Air Temperature Sensor Removal

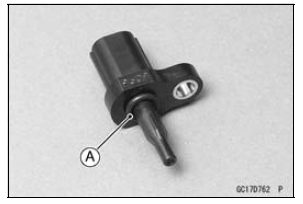

NOTICE Never drop the intake air temperature sensor especially on a hard surface. Such a shock to the sensor can damage it. Remove the fuel tank (see Fuel Tank Removal in the Fuel System (DFI ...

Intake Air Temperature Sensor Output Voltage Inspection

NOTE Be sure the battery is fully charged. Turn the ignition switch to OFF. Remove the fuel tank (see Fuel Tank Removal in the Fuel System (DFI) chapter). Disconnect the intake air temperat ...
