Kawasaki Ninja Service Manual: Water Temperature Sensor Resistance Inspection

Kawasaki Ninja Service Manual / Self-Diagnosis System / Water Temperature Sensor (Service Code 14) / Water Temperature Sensor Resistance Inspection

If the reading is within the standard, but the problem still exists, replace the ECU (see ECU Removal/Installation in the Fuel System (DFI) chapter).

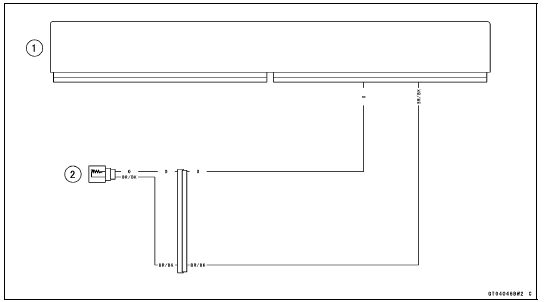

Water Temperature Sensor Circuit

Water Temperature Sensor Circuit


1. ECU

2. Water Temperature Sensor

Water Temperature Sensor Output Voltage Inspection
NOTE Be sure the battery is fully charged. Turn the ignition switch to OFF. Remove the throttle body assy (see Throttle Body Assy Removal in the Fuel System (DFI) chapter). Disconnect the w ...
