Kawasaki Ninja Service Manual: Sprocket Wear Inspection

Kawasaki Ninja Service Manual / Final Drive / Sprocket, Coupling / Sprocket Wear Inspection

If the teeth are worn as illustrated, replace the sprocket, and inspect the drive chain wear (see Drive Chain Wear Inspection in the Periodic Maintenance chapter).

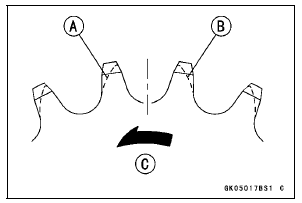

Worn Tooth (Engine Sprocket) [A] Worn Tooth (Rear Sprocket) [B] Direction of Rotation [C]

NOTE

If a sprocket requires replacement, the chain is probably worn also. When replacing a sprocket, inspect the chain.

Sprocket Wear Inspection


Coupling Damper Inspection
Remove the rear wheel coupling, and inspect the rubber dampers [A]. Replace the damper if it appears damaged or deteriorated. ...

Rear Sprocket Warp Inspection
Raise the rear wheel off the ground with the stand so that it will turn freely. Set a dial gauge [A] against the rear sprocket [B] near the teeth as shown in the figure, and rotate [C] the re ...
