Kawasaki Ninja Service Manual: Rear Sprocket Warp Inspection

Kawasaki Ninja Service Manual / Final Drive / Sprocket, Coupling / Rear Sprocket Warp Inspection

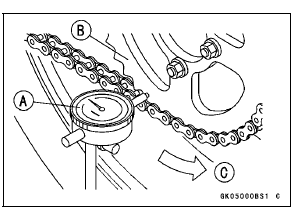

If the runout exceeds the service limit, replace the rear sprocket.

Rear Sprocket Warp Standard: TIR 0.4 mm (0.016 in.) or less

Service Limit: TIR 0.5 mm (0.020 in.)

Rear Sprocket Warp Inspection


Sprocket Wear Inspection
Visually inspect the engine and rear sprocket teeth for wear and damage. If the teeth are worn as illustrated, replace the sprocket, and inspect the drive chain wear (see Drive Chain Wear In ...
