Kawasaki Ninja Service Manual: Special Tools and Sealant

Kawasaki Ninja Service Manual / Electrical System / Special Tools and Sealant

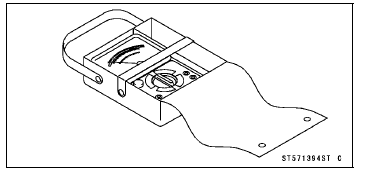

Hand Tester: 57001-1394

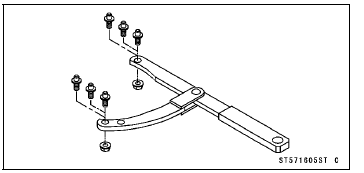

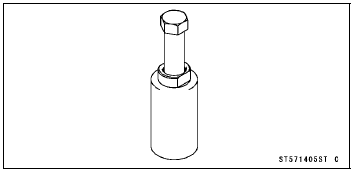

Flywheel Puller Assembly, M38 × 1.5/M35 × 1.5: 57001-1405

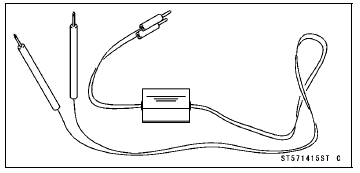

Peak Voltage Adapter: 57001-1415

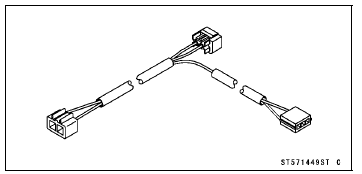

Lead Wire - Peak Voltage Adapter: 57001-1449

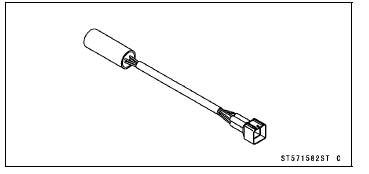

Key Registration Unit: 57001-1582

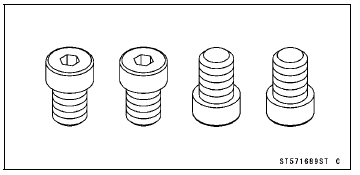

Grip: 57001-1591

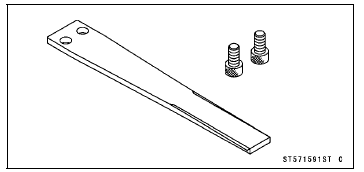

Flywheel & Pulley Holder: 57001-1605

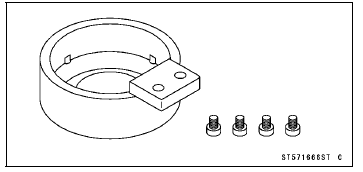

Rotor Holder: 57001-1666


Rotor Holder Attachment: 57001-1689

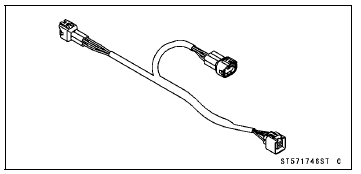

Key Registration Adapter: 57001-1746

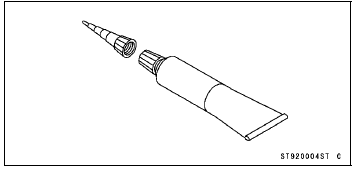

Liquid Gasket, TB1211F: 92104-0004
