Kawasaki Ninja Owners Manual / General information / Ignition Switch/Steering Lock

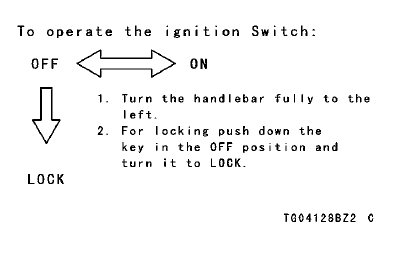

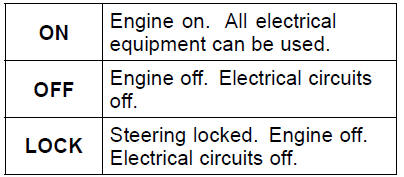

This is a three-position, key-operated switch. The key can be removed from the switch when it is in the OFF or LOCK position.

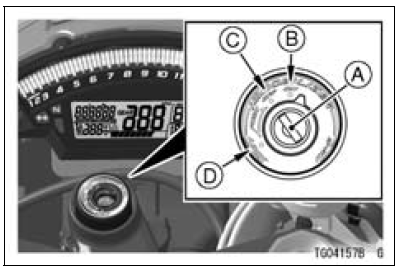

Ignition Switch/Steering Lock


A. Ignition Switch/Steering Lock

B. ON position

C. OFF position

D. LOCK position


NOTE

The tail, city and license plate lights are on whenever the ignition key is in the “ON” position. One headlight goes on when the starter button is released after starting the engine. To avoid battery discharge, always start the engine immediately after turning the ignition key to “ON”.

Ignition Switch/Steering Lock


Keys
This motorcycle has a combination key, which is used for the ignition switch, steering lock, seat lock, and fuel tank cap. Included with the key is a key number, which may be stamped on a separ ...
