Kawasaki Ninja Service Manual: Mechanical Seal Inspection

Kawasaki Ninja Service Manual / Cooling System / Water Pump / Mechanical Seal Inspection

If any one of the parts is damaged, replace the mechanical seal as a unit.

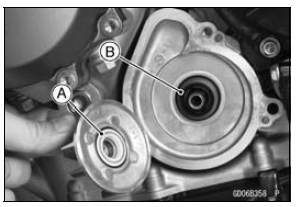

Rubber Seal [A] Mechanical Seal [B]

Mechanical Seal Inspection


Water Pump Housing Assembly
NOTICE Do not reuse the mechanical seal and oil seal. Apply high-temperature grease to the new oil seal lips [A]. Press the new oil seal into the housing with a bearing driver [B] until it st ...
