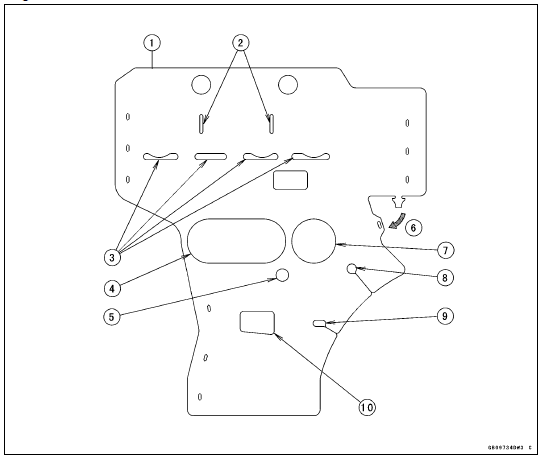

1. Heat Insulation Rubber Plate
2. For Air Switching Valve Hoses (Place the air switching valve above the rubber plate.)
3. For Stick Coils
4. For Throttle Body Assy Holder #2 and #3
5. For Water Temperature Sensor
6. Insert the tab into the slot.
7. For Throttle Body Assy Holder #4
8. For Air Bleeder Hose
9. For Starter Motor Cable
10. For Crankcase Breather Hose
Engine No. ZXT00JE003022
US, CA and CAL ModelsFuel Tank Installation
Note the above WARNING (see Fuel Tank Removal).
Run the hoses correctly (see Cable, Wire, and Hose Routing
section in the Appendix chapter).
Check that the dampers [A] are in place on the fuel tank.
If the dampers are damaged or deteriorated, replace
them.
If the fuel tank brack ...
Lights and Switches Operation Inspection
First Step
Set the gear position in the neutral position.
Turn the ignition switch to ON.
The following lights should go on according to below table.
If the following light does not go on, inspect the meter
unit (see Meter Unit Inspection in the Electrical System
chapter).
...
Fuel Filter Cleaning
The fuel filter [A] is built into the fuel pump and can not be
cleaned or checked.
If the fuel filter is suspected of clogging or being damaged,
replace it with the fuel pump as a set.
Fuel Pump Circuit
1. Ignition Switch
2. Engine Stop Switch
3. Joint Connector E
4. ECU
5. Engine G ...
