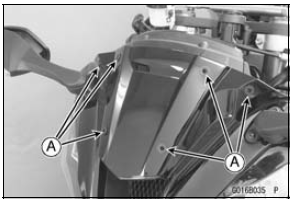

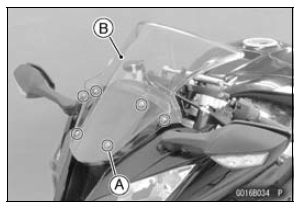

Kawasaki Ninja Service Manual: Windshield

Frame Inspection

Visually inspect the frame for cracks, dents, bending, or warp. If there is any damage to the frame, replace it. WARNINGA repaired frame may fail in use, possibly causing an acc ...

Guard

...

Other materials:

Oil Pump Installation
Install the outer rotor [A] into the crankcase. Assemble: Oil (Water) Pump Shaft [B] Pin [C] Inner Rotor [D] To prevent dropping, apply grease to the pin. Install the inner rotor assembly into the crankcase. Fit the slot [E] onto the projection [F]. Replace the O-ring [A ...

Starter Motor Assembly
Install the positive brush assy [A] and the starter motor terminal [B] as shown in the figure. Replace the O-ring [C] with a new one, and install it. Install: Brush Springs [A] Negative Brush Assy [B] Turn the stopper side [C] to inside. Tighten: Torque - Brush Holder S ...

Relay Box Removal
Remove the left fuel tank cover (see Fuel Tank Removal in the Fuel System (DFI) chapter). Disconnect the connectors [A]. Pull out the relay box [B] from the rubber protector [C]. NOTE The relay box has relays and diodes. The relays and diodes can not be removed. Relay Box Installa ...
