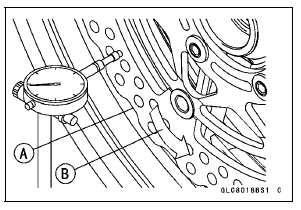

For front disc inspection, turn the handlebar fully to one side.

Brake Disc Warp Inspection


If runout exceeds the service limit, replace the disc.

Disc Runout

Standard: TIR 0.15 mm (0.006 in.) or less

Service Limit: TIR 0.3 mm (0.01 in.)

Brake Disc Wear Inspection
Measure the thickness of each disc [A] at the point where it has worn the most. If the disc has worn past the service limit, replace it. Measuring Area [B] Brake Disc Thickness Standar ...

Brake Fluid
...

Other materials:

Connecting Rod Big End Bearing Insert/Crankpin Wear Inspection
Remove the connecting rod big end (see Connecting Rod Removal). Cut strips of plastigage to crankpin width. Place a strip on the crankpin parallel to the crankshaft installed in the correct position. Tighten the connecting rod big end nuts to the specified torque (see Connecting Rod I ...

Instrument display brightness control
The brightness of the tachometer LED segments and illumination of the multifunction meter are controlled automatically depending on the ambient brightness. A. Tachometer B. Ambient Brightness Sensor C. Multifunction Meter NOTE Be careful not to cover the ambient brightness sensor on th ...

Brake Fluid Leak (Brake Hose and Pipe) Inspection
For KIBS equipped models, remove the fuel tank (see Fuel Tank Removal in the Fuel System (DFI) chapter). Apply the brake lever or pedal and inspect the brake fluid leak from the brake hoses [A], pipes (KIBS equipped models) [B] and fittings [C]. If the brake fluid leaked from any posit ...
