Kawasaki Ninja Service Manual: Check 3-7 Stop Watch Inspection

Kawasaki Ninja Service Manual / Electrical System / Meter, Gauge, Indicator Unit / Meter Unit Inspection / Check 3-7 Stop Watch Inspection

Connect the leads in the same circuit as Check 3-2.
By pushing the upper button each time to set the stop watch mode.

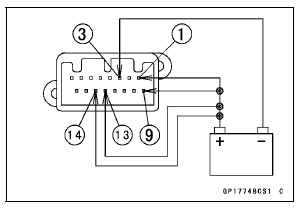

Connect the insulated auxiliary lead processed insulation to the terminal [13] as shown in the figure, then stop watch start to count.
While count the stop watch, connect the auxiliary lead to the terminal [14] as shown in the figure, then indicate the counted lap time during 10 seconds.

If the display function does not work, replace the meter unit.

Check 3-7 Stop Watch Inspection

Check 3-6: Neutral Indicator Light (LED) Inspection

Connect the leads in the same circuit as Check 3-2. Connect the terminal [8] to the battery (–) terminal. Check that the neutral indicator light (LED) [A] goes on. If the indicator ...

Meter Unit Circuit (ZX1000J Model)

1. Ignition Switch 2. Joint Connector F 3. Stop Watch Button 4. Oil Pressure Switch 5. Crankshaft Sensor 6. Water Temperature Sensor 7. Gear Position Switch 8. Intake Air Temperature Sensor ...
