Kawasaki Ninja Service Manual: Special Tools

Kawasaki Ninja Service Manual / Brakes / Special Tools

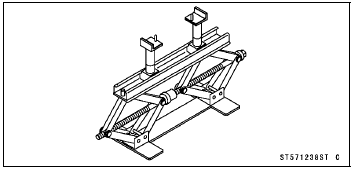

Jack: 57001-1238

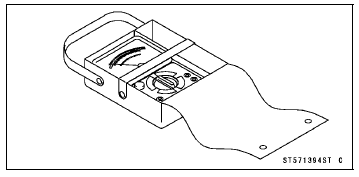

Hand Tester: 57001-1394

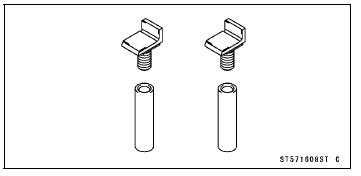

Jack Attachment: 57001-1608
