This red warning indicator light and the oil pressure warning symbol ( )
should go on whenever the ignition switch is turned to “ON� and go off after starting the engine.

Warning Indicator Light (Red)

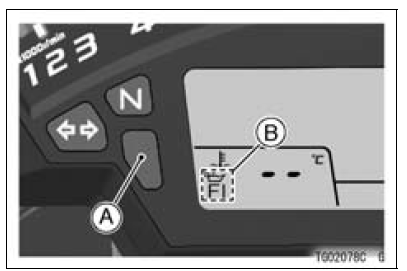

A. Warning Indicator Light (Red)

B. Warning Symbols

This red warning indicator light has the two warning functions: oil pressure warning and fuel injection system warning. This red warning indicator light goes on with each warning symbols: engine oil pressure warning symbol ( ) and
fuel injection warning symbol (
).

If the red warning indicator light goes on with the engine running, have its cause checked by an authorized Kawasaki dealer.

Refer to the “Warning Symbols� in this section for more detailed information.

Fuel Level Warning Indicator Light
: The fuel level warning indicators are activated when approximately 3.8 L (1.0 US gal) of fuel remains as follows: For models without KIBS: A. Fuel Level Warning Indicator Light B. “FUEL ...

Warning Symbols
: The red warning indicator light and the oil pressure warning symbol (  ) goes on whenever the oil pressure is dangerously low or the ignition switch is in the “ONâ€� position with the ...
