Kawasaki Ninja Service Manual: Premuffler Chamber Installation

Kawasaki Ninja Service Manual / Engine Top End / Muffler / Premuffler Chamber Installation

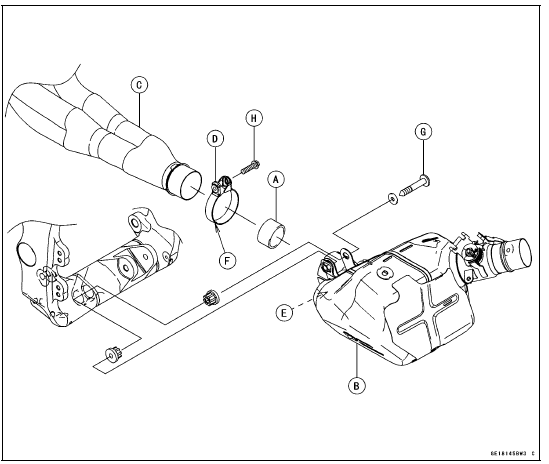

Replace the premuffler chamber gasket [A] with a new one.
Install the premuffler chamber gasket to the premuffler chamber [B] until it is bottomed so that the chamfer side faces exhaust pipe [C].
Install the exhaust pipe clamp [D] as shown in the figure.
Insert the projection [E] into the slot [F].
Install the premuffler chamber.
Tighten the mounting bolt [G] and clamp bolt [H] securely.

Torque - Premuffler Chamber Mounting Bolt: 34 N·m (3.5 kgf·m, 25 ft·lb)

Premuffler Chamber Installation

Install the removed parts (see appropriate chapters).
Thoroughly warm up the engine, wait until the engine cools down, retighten all the bolts.
