Kawasaki Ninja Service Manual: Exhaust Pipe Removal

Kawasaki Ninja Service Manual / Engine Top End / Muffler / Exhaust Pipe Removal

Remove: Radiator (see Radiator and Radiator Fan Removal in the Cooling System chapter) Exhaust Pipe Clamp Bolt [A] (Loosen)

Exhaust Pipe Removal

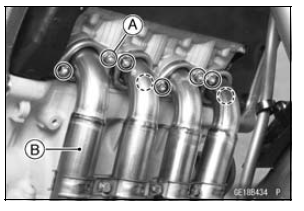

Remove the exhaust pipe holder nuts [A], and pull out the exhaust pipe [B] forward from the premuffler chamber.

Exhaust Pipe Removal

Premuffler Chamber Installation

Replace the premuffler chamber gasket [A] with a new one. Install the premuffler chamber gasket to the premuffler chamber [B] until it is bottomed so that the chamfer side faces exhaust pip ...

Exhaust Pipe Installation

Replace the exhaust pipe gaskets [A] and premuffler chamber gasket [B] with new ones. Install the premuffler chamber gasket to the premuffler chamber [C] until it is bottomed so that the cham ...
