Kawasaki Ninja Service Manual: Engine Sprocket Removal

Kawasaki Ninja Service Manual / Final Drive / Sprocket, Coupling / Engine Sprocket Removal

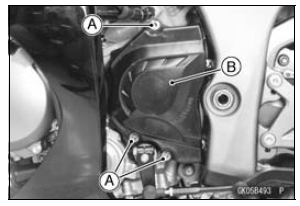

Engine Sprocket Removal


NOTE

When loosening the engine sprocket nut, hold the rear brake on.

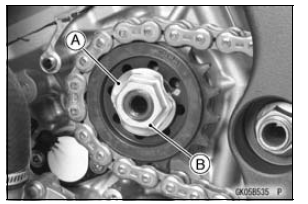

Engine Sprocket Removal

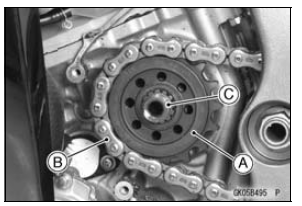

Engine Sprocket Removal


Sprocket, Coupling
...

Engine Sprocket Installation
Replace the sprocket washer and axle cotter pin. Install the engine sprocket onto the output shaft. Apply molybdenum disulfide oil solution to the threads and seating surface of the engine sp ...
