Kawasaki Ninja Service Manual: DFI System Troubleshooting Guide

Kawasaki Ninja Service Manual / Fuel System (DFI) / DFI System Troubleshooting Guide

NOTE

This is not an exhaustive list, giving every possible cause for each problem listed. It is meant simply as a rough guide to assist the troubleshooting for some of the more common difficulties in DFI system.
The ECU may be involved in the DFI electrical and ignition system troubles. If these parts and circuits are checked out good, be sure to check the ECU for ground and power supply. If the ground and power supply are checked good, replace the ECU.

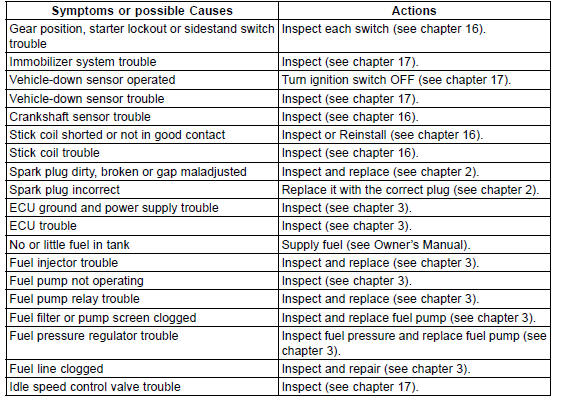

Engine Won’t Turn Over

Engine Won’t Turn Over

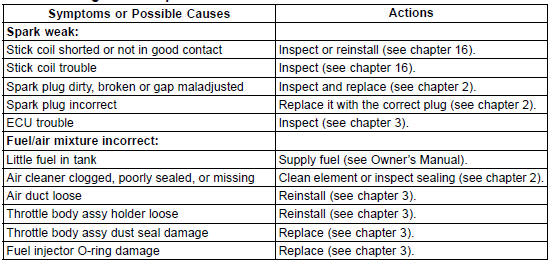

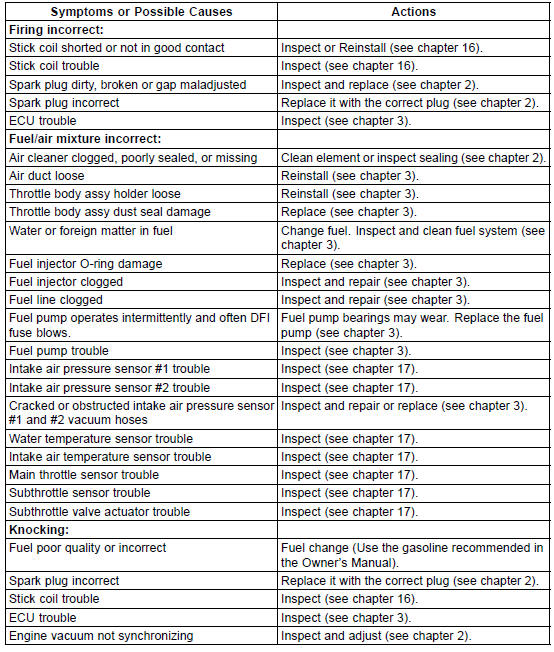

Poor Running at Low Speed

Poor Running at Low Speed

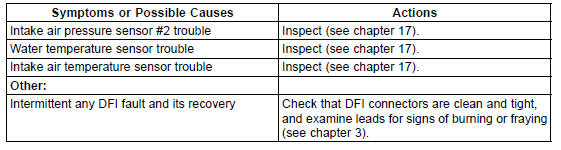

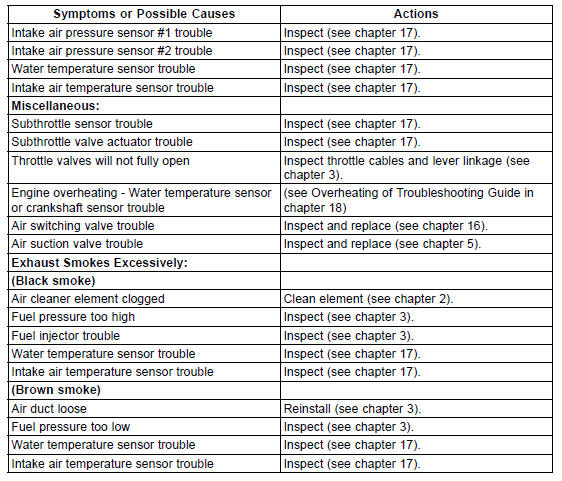

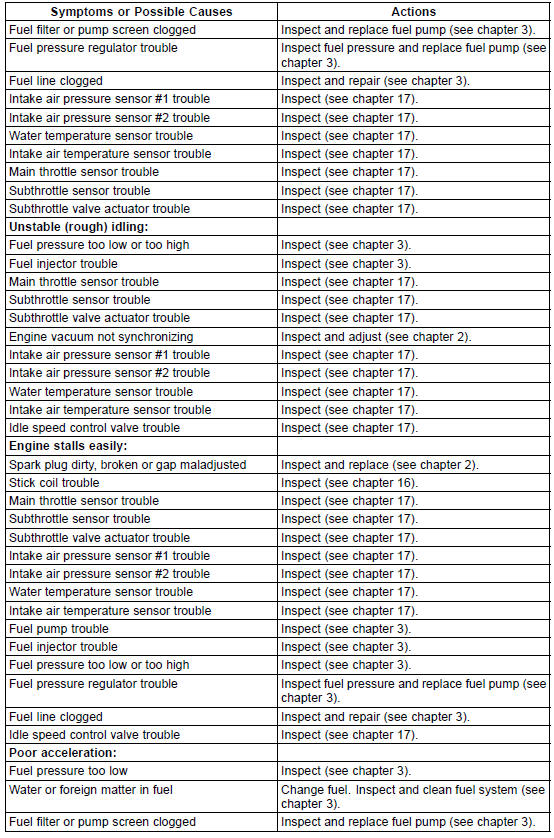

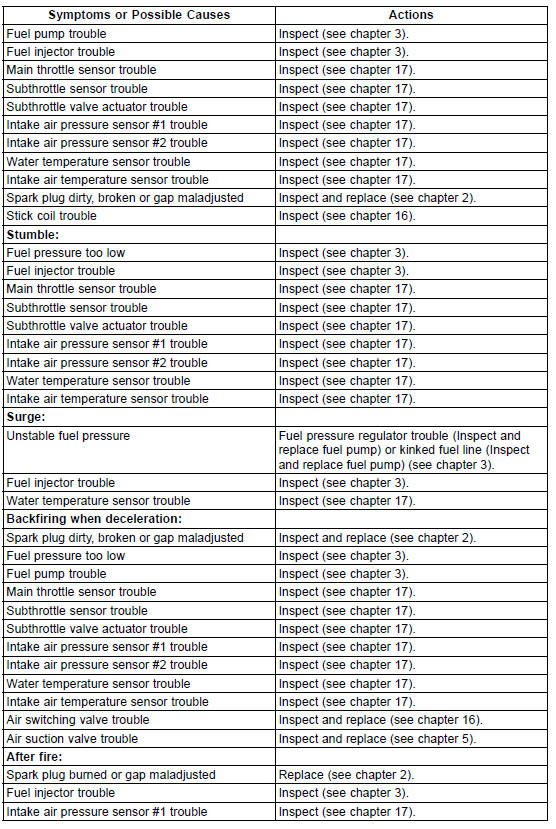

Poor Running or No Power at High Speed

Poor Running or No Power at High Speed

Inquiries to Rider

DFI Diagnosis Flow Chart Each rider reacts to problems in different ways, so it is important to confirm what kind of symptoms the rider has encountered. Try to find out exactly what pro ...

Warning Indicator Light (LED)

Light (LED) Inspection The warning indicator light (LED) [A] is used for the FI indicator, immobilizer indicator (immobilizer equipped models), water temperature warning indicator and oil pres ...

Other materials:

Throttle Body Assy Disassembly
1. Throttle Body Assy 2. Subthrottle Valve Actuator 3. Idle Speed Control Valve Actuator 4. Main Throttle Sensor 5. Subthrottle Sensor 6. Primary Fuel Injectors 7. Delivery Pipe Assy NOTICE Do not remove, disassemble or adjust the main throttle sensor, subthrottle sensor, subthrottle v ...

Immobilizer System (Equipped Models)
This motorcycle is equipped with an immobilizer system to protect the motorcycle from theft. This system provides a theft proof device by means of matching a code between the inbuilt key transponder and ECU. If the code does notmatch, ignition system, injectors, subthrottle valve actuator an ...

Fuel Injector Audible Inspection
NOTE Be sure the battery is fully charged. The secondary fuel injectors are operating with following conditions. 1. The engine speed is more than 6 000 r/min (rpm). 2. The throttle opening is more than 12°. Remove: Fuel Tank (see Fuel Tank Removal) Primary Fuel Hose (see Fuel ...
