ECU Fuse Removal
Refer to the 30 A Main/15 A ECU Fuse Removal in the Electrical System chapter.
ECU Fuse Installation
If a fuse fails during operation, inspect the DFI system to determine the cause, and then replace it with a new fuse of proper amperage.
ECU Fuse Inspection
Refer to the Fuse Inspection in the Electrical System chapter.
ECU Main Relay Removal/Installation

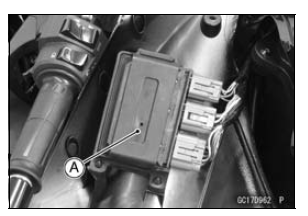

The ECU main relay is built in the relay box [A].
ECU Main Relay Inspection
Refer to the Relay Circuit Inspection in the Electrical System chapter.
CAN Communication Line
Fuel LineExternal Shift Mechanism Installation
Install the gear positioning lever [A] as shown in the figure.
Install:
Spring [B]
Washer [C]
Tighten:
Torque - Gear Positioning Lever Bolt [D]: 12 N·m (1.2 kgf·m,
106 in·lb)
Assemble:
Ratchet [A]
Pawls [B]
Pins [C]
Springs [D]
Install the shift ratchet ...
CAN Communication (Transmission)/CAN Bus OFF Monitor Inspection (Service Code
b 57) CAN Communication (Reception) Monitor Inspection (Service Code b 58)
Remove:
Seat (see Seat Removal in the Frame chapter)
Immobilizer (Equipped Models)/Kawasaki Diagnostic
System Connector Cap [A]
Measure the CAN communication line resistance.
Immobilizer (Equipped Models)/Kawasaki Diagnostic
System Connector [A]
GY/BL Terminal [B]
LB Ter ...
Exploded View
CL: Apply cable lubricant.
EO: Apply engine oil.
G: Apply grease.
HG: Apply high-temperature grease.
L: Apply a non-permanent locking agent.
M: Apply molybdenum disulfide grease.
R: Replacement Parts
S: Follow the specified tightening sequence.
Specifications
Special ...
