Damper Cam Inspection


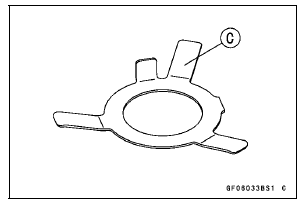

Damper Cam Inspection


Clutch Housing Spline Inspection

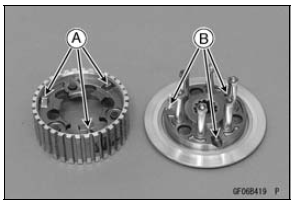

Visually inspect where the teeth [A] on the steel plates wear against the sub clutch hub splines [B]. If there are notches worn into the splines, replace the sub clutch hub. Also, replace the ...

Engine Lubrication System
...

Other materials:

KIBS Motor Relay Inspection (Service Code b 35)
Check the KIBS motor relay fuse (25 A) [A] (see Fuse Inspection in the Electrical System chapter) If the fuse is good, check the wiring continuity as follows. Disconnect: Battery Positive Cable (see Battery Removal in the Electrical System chapter) KIBS Hydraulic Unit Lead Connector (see ...

Spring Preload Adjustment
To adjust the spring preload, turn the spring preload adjuster [A]. The standard adjuster setting is the 6 turns in from the fully counterclockwise position. WARNINGIf both adjusters are not adjusted equally, handling may be impaired and a hazardous condition may result. B ...

Connecting Rod Big End Side Clearance Inspection
Measure connecting rod big end side clearance. Insert a thickness gauge [A] between the big end and either crank web to determine clearance. Connecting Rod Big End Side Clearance Standard: 0.13 0.38 mm (0.0051 0.0150 in.) Service Limit: 0.58 mm (0.023 in.) If the clearance exceeds ...
