Crankshaft Sensor Removal

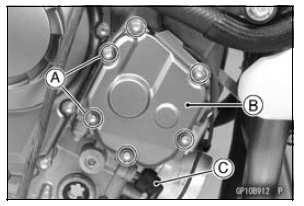

Crankshaft Sensor Removal

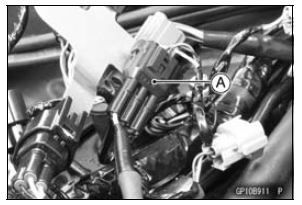

Crankshaft Sensor Removal


Ignition System
WARNINGThe ignition system produces extremely high voltage. Do not touch the spark plug, ignition coil or ignition coil lead while the engine is running, or you could receive a s ...

Crankshaft Sensor Installation

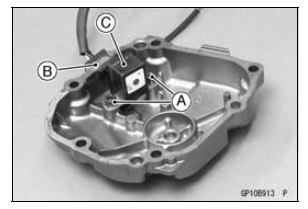

Apply a non-permanent locking agent to the crankshaft sensor bolts [A]. Tighten: Torque - Crankshaft Sensor Bolts: 5.9 N·m (0.60 kgf·m, 52 in·lb) Using a high flash-point solvent, clea ...
