Kawasaki Ninja Service Manual: Coupling Bearing Removal

Coupling Installation

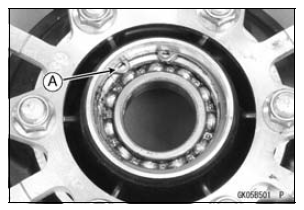

Apply high-temperature grease to the following. Coupling Grease Seal Lips [A] Coupling Internal Surface [B] Ball Bearing [C] Install: Collar [A] Coupling ...

Coupling Bearing Installation

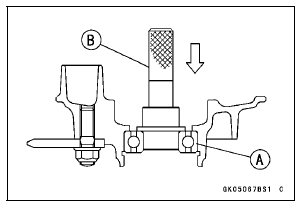

Replace the bearing with a new one. Press in the bearing [A] until it is bottomed. Special Tool - Bearing Driver Set [B]: 57001-1129 Pack the bearing with high-temperature grease. Replace t ...
