Kawasaki Ninja Service Manual: Spring Preload Adjustment

Kawasaki Ninja Service Manual / Suspension / Front Fork / Spring Preload Adjustment

To adjust the spring preload, turn the spring preload adjuster [A].

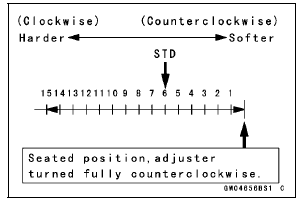

The standard adjuster setting is the 6 turns in from the fully counterclockwise position.

WARNING

If both adjusters are not adjusted equally, handling may be impaired and a hazardous condition may result. Be sure the adjusters are set equally.

Spring Preload Adjustment

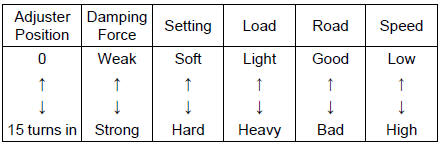

The spring preload can be left soft for average riding. But it should be adjusted harder for high speed riding or riding with a passenger. If the spring action feels too soft or too stiff, adjust it in accordance with the following table.

Spring Action

Spring Preload Adjustment

Compression Damping Force Adjustment

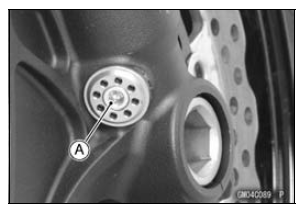

To adjust the compression damping force, turn the compression damping adjuster [A]. The standard adjuster setting is the 4 1/2 turns out from the fully clockwise position. WARNINGIf b ...

Front Fork Removal (Each Fork Leg)

Loosen the front fork top plug [A] beforehand if the fork leg is to be disassembled. Special Tool - Top Plug Wrench (45 mm) [B]: 57001-1741 NOTE Loosen the top plug after loosening the handleb ...
