Kawasaki Ninja Service Manual: Camshaft Chain Removal

Kawasaki Ninja Service Manual / Engine Top End / Camshaft, Camshaft Chain / Camshaft Chain Removal

Remove: Camshafts (see Camshaft Removal) Timing Rotor (see Timing Rotor Removal in the Electrical System chapter) Front and Rear Camshaft Chain Guides (see Cylinder Head Removal)

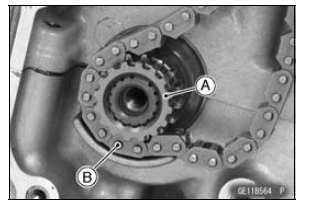

Remove the crankshaft sprocket [A].
Pull out the camshaft chain [B] downward.

Camshaft Chain Removal

Cam Wear Inspection

Remove the camshafts (see Camshaft Removal). Measure the height [A] of each cam with a micrometer. If the cams are worn down past the service limit, replace the camshaft. Cam Height Standar ...

Camshaft Chain Installation

Install the camshaft chain from head side. Install the crankshaft sprocket [A] on the crankshaft [B] with their teeth [C] aligned. Install the removed parts (see appropriate chapters). ...
