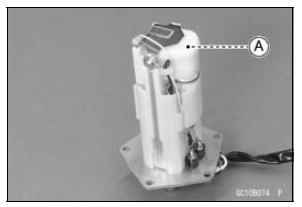

The fuel filter [A] is built into the fuel pump and can not be cleaned or checked.
If the fuel filter is suspected of clogging or being damaged, replace it with the fuel pump as a set.

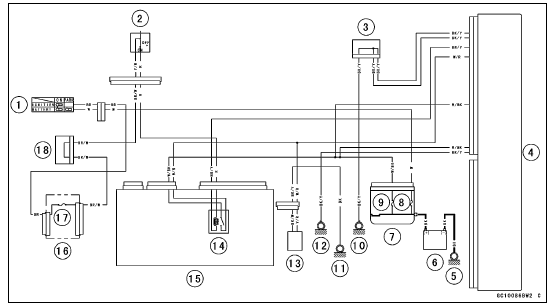

Fuel Pump Circuit
1. Ignition Switch
2. Engine Stop Switch
3. Joint Connector E
4. ECU
5. Engine Ground
6. Battery
7. Starter Relay
8. Main Fuse 30 A
9. ECU Fuse 15 A
10. Frame Ground 2
11. Frame Ground 3
12. Frame Ground 1
13. Fuel Pump
14. Fuel Pump Relay
15. Relay Box
16. Fuse Box 1
17. Ignition Fuse 15 A
18. Joint Connector F
