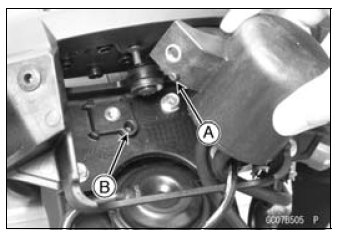

Vacuum Chamber Installation (Other than US, CA and CAL Models)


Vacuum Chamber Removal (Other than US, CA and CAL Models)
Remove: Upper Fairing Assembly (see Upper Fairing Assembly Removal in the Frame chapter) Bolt [A] Hoses [B] (Disconnect) Vacuum Chamber [C] ...

Fuel Tank
...

Other materials:

Meter Unit Circuit (ZX1000K Model)
1. Ignition Switch 2. Joint Connector F 3. Stop Watch Button 4. Oil Pressure Switch 5. Crankshaft Sensor 6. Water Temperature Sensor 7. Gear Position Switch 8. Intake Air Temperature Sensor 9. ESD ECU (ZX1000JD/KD) 10. ECU 11. Rear Wheel Rotation Sensor 12. Frame Ground 1 13. Engine ...

Air Intake Duct Assembly (US, CA and CAL Models)
Install the dampers [A] and seal [B] as shown in the figure. Fit the holder [C] to the air intake ducts [D]. Projections [E] and Holes [F] Grooves [G] and Ribs [H] Tighten: Torque - Air Intake Duct Assembly Screws [I]: 1.5 N·m (0.15 kgf·m, 13 in·lb) Turn the plug [J] so that ...

Intake Air Temperature Sensor Output Voltage Inspection
NOTE Be sure the battery is fully charged. Turn the ignition switch to OFF. Remove the fuel tank (see Fuel Tank Removal in the Fuel System (DFI) chapter). Disconnect the intake air temperature sensor connector and connect the measuring adapter [A] between these connectors as shown in ...
