Kawasaki Ninja Service Manual: Tie-Rod Operation Inspection

Kawasaki Ninja Service Manual / Periodic Maintenance / Periodic Maintenance Procedures / Suspension / Tie-Rod Operation Inspection

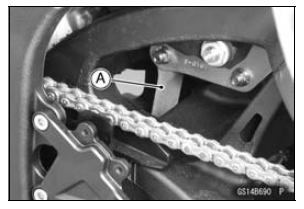

If the tie-rod [A] do not smoothly stroke or noise is found, inspect the fasteners and tie-rod bearings (see Tie-Rod/Rocker Arm Bearing, Sleeve Inspection in the Suspension chapter).

Tie-Rod Operation Inspection


In this photo, the foot guard has been removed for clarity.

Rocker Arm Operation Inspection
Pump the seat down and up 4 or 5 times, and inspect the smooth stroke. If the rocker arm [A] does not smoothly stroke or noise is found, inspect the fasteners and bearings (see Tie-Rod/Rocke ...
