Kawasaki Ninja Service Manual: Seat Cover Removal

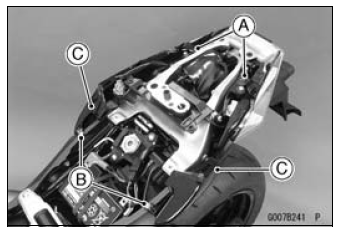

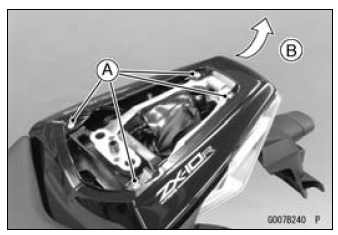

Seat Covers

...

Seat Cover Installation

Installation is the reverse of removal. Note the following. When installing the pad [A], install it along the corner [B] as shown in the figure. When installing the pad [C], align the ends [D] ...

Other materials:

Radiator Fan Relay Inspection
Refer to the Relay Circuit Inspection in the Electrical System chapter If the radiator fan relay is normal, check the wiring for continuity, using the wiring diagram in this section. Special Tool - Hand Tester: 57001-1394 If the wiring is good, check the ECU for its ground and power supp ...

KIBS Hydraulic Unit Terminal Names
1. Ground: BK 2. CAN Communication Line (High): GY/BL 3. Front Wheel Rotation Sensor Signal Input: Y 4. Power Supply: BR/W 5. KIBS Kawasaki Self-Daignosis System Terminal: P 6. Front and Rear Brake Light Switch Signal: BL/R 7. Unused 8. Front Wheel Rotation Sensor Signal Output: G/Y 9. P ...

Ignition Switch/Steering Lock
This is a three-position, key-operated switch. The key can be removed from the switch when it is in the OFF or LOCK position. A. Ignition Switch/Steering Lock B. ON position C. OFF position D. LOCK position NOTE The tail, city and license plate lights are on whenever the ignition key i ...
