Kawasaki Ninja Service Manual: Rocker Arm Removal

Kawasaki Ninja Service Manual / Suspension / Tie-Rod, Rocker Arm / Rocker Arm Removal

Squeeze the brake lever slowly and hold it with a band.
Remove the front footpeg bracket bolts.
Raise the rear wheel off the ground with the jack (see Rear Shock Absorber Removal).

Special Tools - Jack: 57001-1238 Jack Attachment: 57001-1608

Rocker Arm Removal

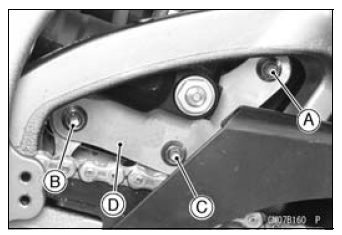

Remove: Lower Rear Shock Absorber Bolt and Nut [A] Upper Tie-Rod Bolt and Nut [B] Rocker Arm Bolt and Nut [C] Rocker Arm [D] (Both Sides)

Tie-Rod Removal

Squeeze the brake lever slowly and hold it with a band [A]. Remove the front footpeg bracket bolts [A]. Raise the rear wheel off the ground with the jack (see Rear Shock Abs ...

Rocker Arm Installation

Install the both rocker arms [A] so that their marks [B] face left side. Replace the tie-rod nut, rear shock absorber nut and rocker arm nut with new ones. Apply grease to the insid ...
