Kawasaki Ninja Service Manual: Radiator Fan System

Kawasaki Ninja Service Manual / Electrical System / Radiator Fan System

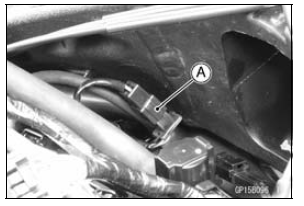

Fan Motor Inspection

If the fan does not rotate, the fan motor is defective and must be replaced.

Fan Motor Inspection

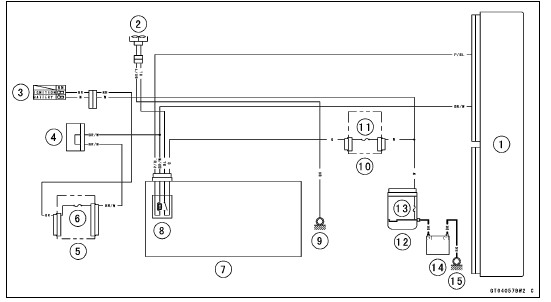

Radiator Fan Circuit

Radiator Fan Circuit


1. ECU

2. Fan Motor

3. Ignition Switch

4. Joint Connector F

5. Fuse Box 1

6. Ignition Fuse 15 A

7. Relay Box

8. Radiator Fan Relay

9. Frame Ground

10. Fuse Box 2

11. Fan Fuse 15 A

12. Starter Relay

13. Main Fuse 30 A

14. Battery

15. Engine Ground
