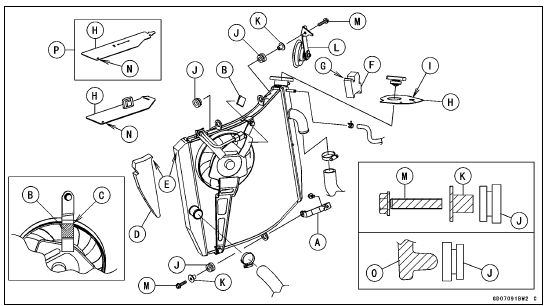

If the radiator bracket [A] was removed, install it.

Install the radiator fan to the radiator
Tighten the radiator fan mounting bolts.
When installing the pad [B], install it so that the upper end of the pad aligns with the corner top [C].
When install the pad [D], install it so that the corners [E] align.
When install the pad [F], install it so that the hollow [G] fits to the radiator overflow hose.
Install the rubber caps [H].

Run the radiator overflow hose to the slit [I].

Run the radiator fan motor lead correctly (see Cable, Wire, and Hose Routing section in the Appendix chapter).
Install the rubber dampers [J] and collars [K] as shown in the figure.

Face the small diameter side of the damper to the collar.

Install the horn [L].
Tighten the radiator bolts [M].
Fit the holes [N] to the projection of the heat insulation plate.

Frame [O] Frame No. JKAZXT00JJA003074 or

JKAZXCJ1□BA003074 [P]

Radiator and Radiator Fan Installation

Install the hoses and clamps (see Cable, Wire, and Hose Routing section in the Appendix chapter).
Tighten:

Torque - Water Hose Clamp Screws: 3.0 N·m (0.31 kgf·m, 27 in·lb)

Install the removed parts (see appropriate chapters).
