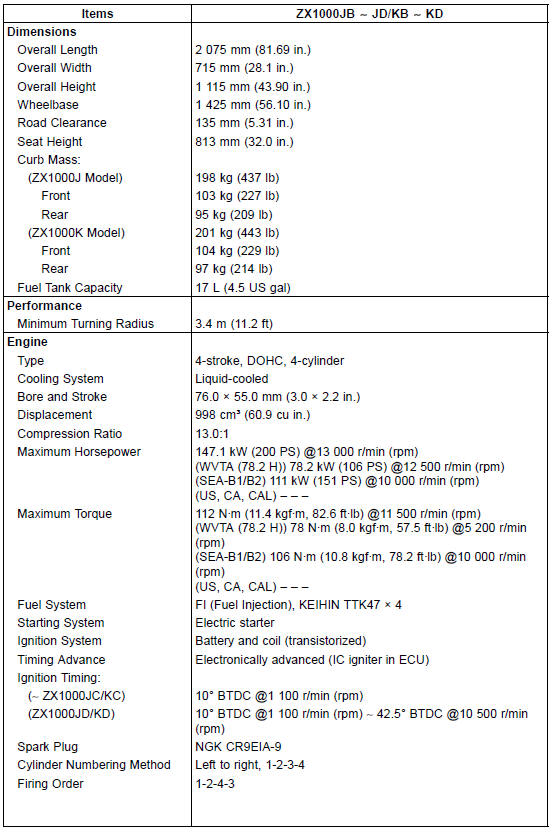

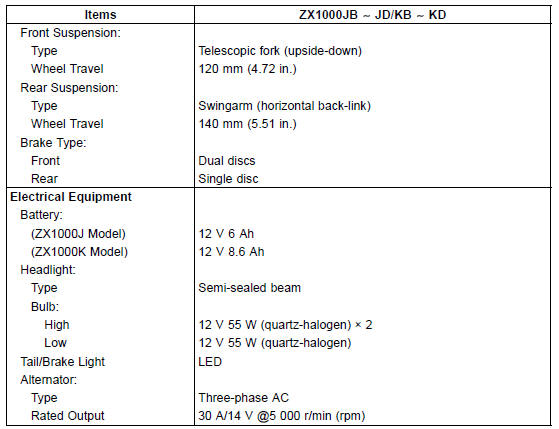

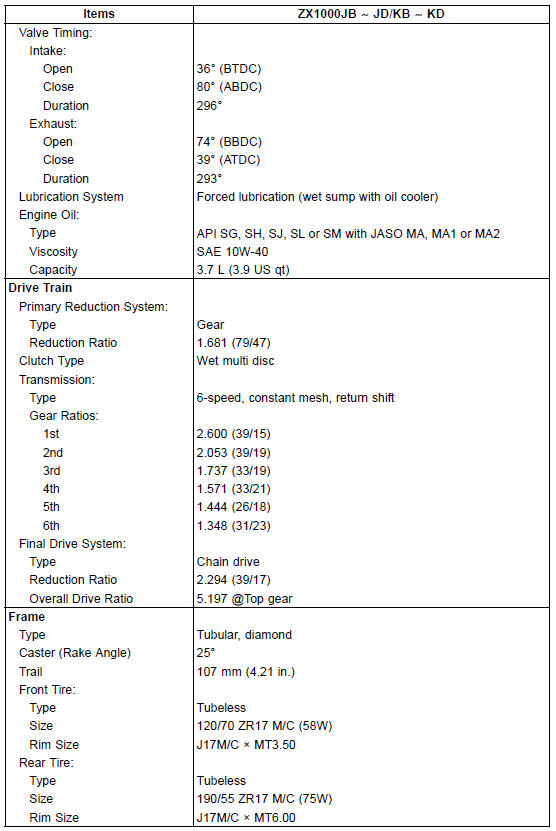

Specifications are subject to change without notice, and may not apply to every country.
Model IdentificationCompression Damping Force Adjuster and Rebound
Damping Force Adjuster Adjustment
The compression damping force adjuster
and the rebound damping force
adjuster are located on top of each front
fork leg.
Turn the adjuster clockwise with a
screwdriver to increase damping
force.
Turn the adjuster counterclockwise
to decrease damping force.
NOTICE
Do not force to t ...
Exhaust Butterfly Valve Actuator Installation
Install the pulley [A] on the actuator so that the hole side
[B] align with the groove [C] on the shaft.
Make sure that the groove on the shaft is pointing toward
the center of the screw [D].
If the shaft position is incorrect, refer to the following
NOTE and procedures to electrically ad ...
Drive Chain Slack Adjustment
Remove the cotter pin [A], and loosen the rear axle nut
[B].
Loosen the both chain adjuster locknuts [C].
If the chain is too loose, turn out the left and right chain
adjusters [D] evenly.
If the chain is too tight, turn in the left and right chain
adjusters evenly, and kick the wheel f ...
