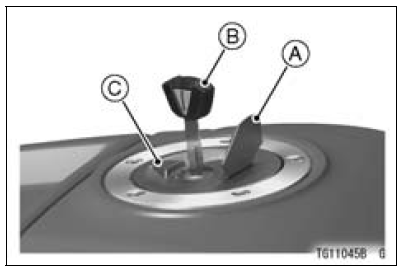

To open the fuel tank cap, pull up the key hole cover. Insert the ignition key into the fuel tank cap and turn the key to the right.
To close the cap, push it down into place with the key inserted. The key can be removed by turning it to the left to the original position. Close the key hole cover.
NOTE

A. Key Hole Cover
B. Ignition Key
C. Fuel Tank Cap
Brake Lever Adjuster
Fuel TankEvaporative Emission Control System Inspection (CAL and SEA-B1 Models)
Inspect the canister as follows.
Remove the upper fairing assembly (see Upper Fairing
Assembly Removal in the Frame chapter).
Remove the canister [A].
Visually inspect the canister for cracks or other damage.
If the canister has any cracks or bad damage, replace it
with a new one.
NO ...
Coolant Flow Chart
1. Radiator
2. Radiator Fan
3. Water Pump
4. Oil Cooler
5. Oil Cooler Intake Hose
6. Oil Cooler Outlet Hose
7. Cylinder Jacket
8. Cylinder Head Jacket
9. Thermostat Housing
10. Air Bleeder Hose
11. Radiator Cap
12. Radiator Overflow Hose
13. Reserve Tank
14. Reserve Tank Overflow Ho ...
Wear Inspection
Remove the left front footpeg bracket
bolts.
A. Front Footpeg Bracket
B. Bolts
Remove the bolts and chain cover.
A. Bolts
B. Chain Cover
Stretch the chain taut either by using
the chain adjusters, or by hanging a
10 kg (22 lb) weight on the chain.
Measure the lengt ...
