Kawasaki Ninja Service Manual: Front Seat Installation

Front Seat Removal

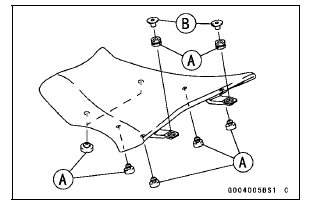

Remove: Rear Seat (see Rear Seat Removal) Upper Seat Cover (see Seat Cover Removal) Remove the front seat bolts [A]. Remove the front seat backward to clear the seat hooks. ...

Rear Seat Removal

Insert the ignition key [A] into the seat lock as shown in the figure. Pull up the seat [B] upward while turning the key clockwise, and remove it forward. ...

Other materials:

Shift Fork Guide Pin/Drum Groove Wear Inspection
Measure the diameter of each shift fork guide pin [A], and measure the width [B] of each shift drum groove. If the guide pin on any shift fork is less than the service limit, the fork must be replaced. Shift Fork Guide Pin Diameter Standard: 6.9 7.0 mm (0.272 0.276 in.) Service Limit: ...

Connecting Rod Big End Side Clearance Inspection
Measure connecting rod big end side clearance. Insert a thickness gauge [A] between the big end and either crank web to determine clearance. Connecting Rod Big End Side Clearance Standard: 0.13 0.38 mm (0.0051 0.0150 in.) Service Limit: 0.58 mm (0.023 in.) If the clearance exceeds ...

Stick Coil Removal
Remove the air cleaner housing (see Air Cleaner Housing Removal in the Fuel System (DFI) chapter). Disconnect the stick coil connectors [A]. Pull out the stick coils [B] upward. First, turn the stick coil by 90 degrees, and then pull it out by twisting the coil head to the left and righ ...
