Kawasaki Ninja Service Manual: Front Brake Pad Removal

Brake Pads

...

Front Brake Pad Installation

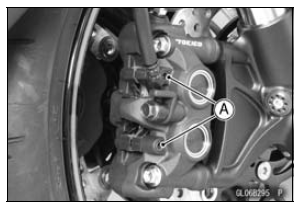

Check that the pad spring [A] is in place on the caliper. Push the caliper pistons in by hand as far as they will go. Install the brake pads [A] on the pad spring correctly. Fit the ...

Other materials:

Compression Damping Force Adjustment
There are two adjustments you can make to the compression damping force. High Speed Compression Damping Adjuster [A] Low Speed Compression Damping Adjuster [B] To adjust the high speed compression damping force, turn the outside damping adjuster with a wrench to the desired position ...

Crankcase Halves Assembly
Install: Crankshaft (see Crankshaft Installation) Connecting Rods (see Connecting Rod Installation) Using a cleaning fluid, clean off any oil or dirt on the mating surface of the crankcase halves. Apply liquid gasket to the mating surface of the lower crankcase half as shown in the fi ...

Piston Ring Groove Width Inspection
Measure the piston ring groove width. Use a vernier caliper at several points around the piston. Piston Ring Groove Width Standard: Top [A] 0.82 0.84 mm (0.0323 0.0331 in.) Second [B] 0.82 0.84 mm (0.0323 0.0331 in.) Service Limit: 0.92 mm (0.036 in.) Second 0.92 mm (0.036 in.) ...
