This motorcycle is equipped with a exhaust device system. This system controls the valve in the exhaust pipe and produces stable engine power at low and middle engine speed. This exhaust device is controlled by the ECU, and adjustment or maintenance should be done only by a competent mechanic following the instructions in the Service Manual.

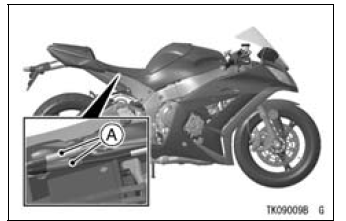

A. Exhaust Device Cables
NOTICE
Do not adjust the exhaust device system by yourself. The maladjustment will cause the poor engine performance and engine damage.
Kawasaki Clean Air System
Air CleanerEvaporative Emission Control System (California
model only)
This system routes fuel vapors from
the fuel system into the running engine
or stores the vapors in a canister when
the engine is stopped. Although no adjustments
are required, a thorough visual
inspection must be made at the intervals
specified by the Periodic Maintenance
Chart.
Inspection
...
Relay Box Removal
Remove the left fuel tank cover (see Fuel Tank Removal
in the Fuel System (DFI) chapter).
Disconnect the connectors [A].
Pull out the relay box [B] from the rubber protector [C].
NOTE
The relay box has relays and diodes. The relays and
diodes can not be removed.
Relay Box Installa ...
Engine Oil Flow Chart
1. Oil Screen
2. Oil Pump
3. Oil Pressure Relief Valve
4. Oil Filter
5. Oil Pipe
6. Oil Cooler
7. Balancer Oil Passage
8. Main Oil Passage
9. Crankshaft Oil Passage
10. Oil Pressure Switch
11. Camshaft Oil Passages
12. Drive Shaft Oil Passage
13. Output Shaft Oil Passage
14. Starter ...
