Kawasaki Ninja Service Manual: Clutch Lever Installation

Cable Installation

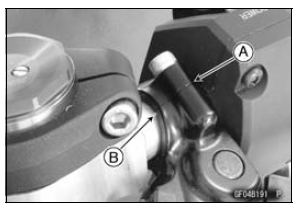

Run the clutch cable correctly (see Cable, Wire, and Hose Routing section in the Appendix chapter). Adjust the clutch cable (see Clutch Operation Inspection in the Periodic Maintenance chapte ...

Clutch Cover

...

Other materials:

Release Shaft Installation
Apply grease to the oil seal lips on the upper ridge of the clutch cover. Apply engine oil to the needle bearings in the hole of the clutch cover. Applymolybdenum disulfide grease to the pusher-holding portion [A] on the release shaft. Install the washer [B] and spring [C]. ...

Torque Limiter Installation
Apply molybdenum disulfide grease to the torque limiter shaft [A]. Install the torque limiter [B], the collar [C] and the shaft. Turn the large-hole end of the shaft to inside as shown in the figure. Replace the washer [D] with a new one. Apply a non-permanent locking agent to the t ...

Engine Oil Flow Chart
1. Oil Screen 2. Oil Pump 3. Oil Pressure Relief Valve 4. Oil Filter 5. Oil Pipe 6. Oil Cooler 7. Balancer Oil Passage 8. Main Oil Passage 9. Crankshaft Oil Passage 10. Oil Pressure Switch 11. Camshaft Oil Passages 12. Drive Shaft Oil Passage 13. Output Shaft Oil Passage 14. Starter ...
