NOTE
Install the needle bearings so that the manufacture’s mark face out.

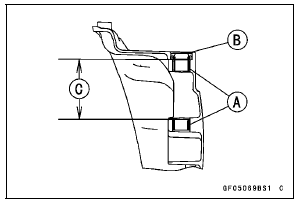

Press the upper and lower bearings so that the bearing surface [C] is flush with the housing end of clutch cover.
Press the oil seal so that the oil seal surface is flush with the housing end of the clutch cover.
Clutch Cover Disassembly
ClutchIntake Air Pressure Sensor #1 Installation
NOTE
The intake air pressure sensor #1 is the same part as
the intake air pressure sensor #2.
Installation is basically the reverse of removal.
Position the intake air pressure sensor #1 [A] between the
projections [B] on the rubber damper.
Install the rubber damper [A] on the bracket ...
DFI System Wiring Diagram
Part Names
1. Air Intake Solenoid Valve (Other than US, CA and CAL Models)
2. Front Wheel Rotation Sensor
3. Engine Stop Switch
4. Starter Button
5. Air Switching Valve
6. Stick Coil #1, #2, #3, #4
7. Spark Plugs
8. Intake Air Temperature Sensor
9. Crankshaft Sensor
10. Secondary Fuel ...
DFI Power Source
ECU Fuse Removal
Refer to the 30 A Main/15 A ECU Fuse Removal in the
Electrical System chapter.
ECU Fuse Installation
If a fuse fails during operation, inspect the DFI system to
determine the cause, and then replace it with a new fuse
of proper amperage.
Refer to the Fuse Installation in ...
