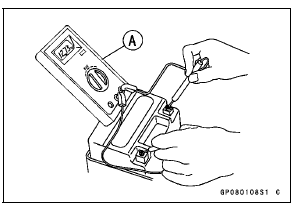

Battery charging condition can be checked by measuring battery terminal voltage with a digital voltmeter [A].

Remove the seat (see Seat Removal in the Frame chapter).
Disconnect the battery terminals.

Charging Condition Inspection

NOTICE

Be sure to disconnect the negative (–) cable first.

Measure the battery terminal voltage.

NOTE

Measure with a digital voltmeter which can be read one decimal place voltage.

If the reading is 12.8 V or more, refresh charge is not required, however, if the read is below the 12.8 V, refresh charge is required.

Battery Terminal Voltage Standard: 12.8 V or more

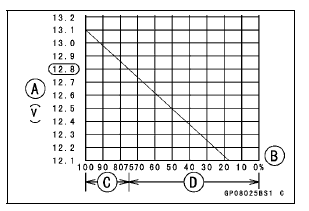

Terminal Voltage (V) [A] Battery Charge Rate (%) [B] Good [C] Refresh charge is required [D]

Charging Condition Inspection

Interchange

A sealed battery can fully display its performance only when combined with a proper vehicle electric system. Therefore, replace a sealed battery only on a motorcycle which was originally equipped ...

Refreshing Charge

Remove the battery (see Battery Removal). Do refresh charge by following method according to the battery terminal voltage. WARNINGThis battery is sealed type. Charge with current ...
