Kawasaki Ninja Service Manual: Wiring Diagram (Other than US, CA and CAL without KIBS Models)

Kawasaki Ninja Service Manual / Electrical System / Wiring Diagram (Other than US, CA and CAL without KIBS Models)

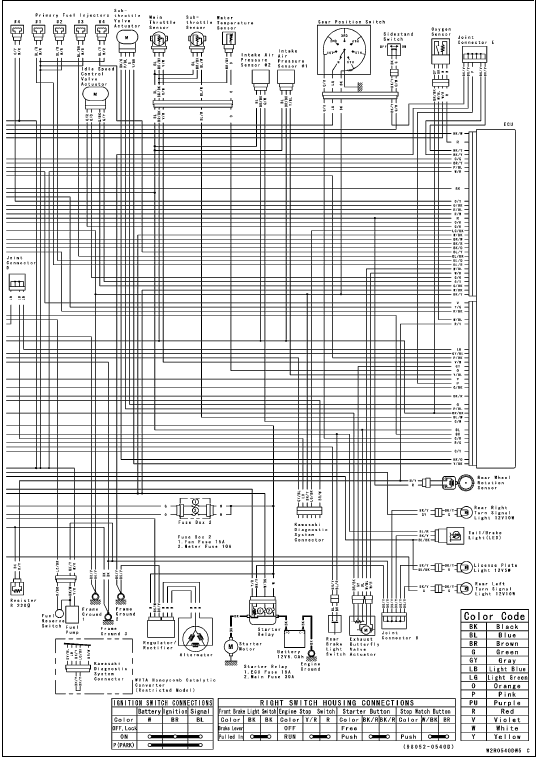

ZX1000JC

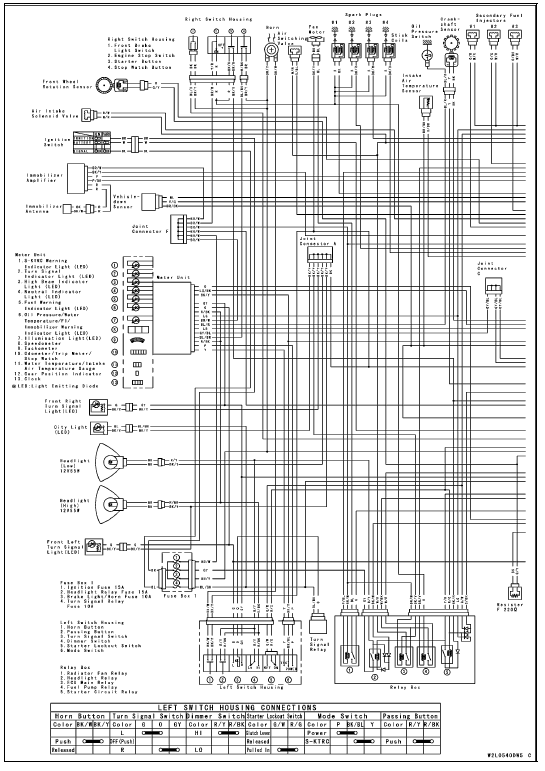

Wiring Diagram (Other than US, CA and CAL without KIBS Models)


Wiring Diagram (Other than US, CA and CAL without KIBS Models)

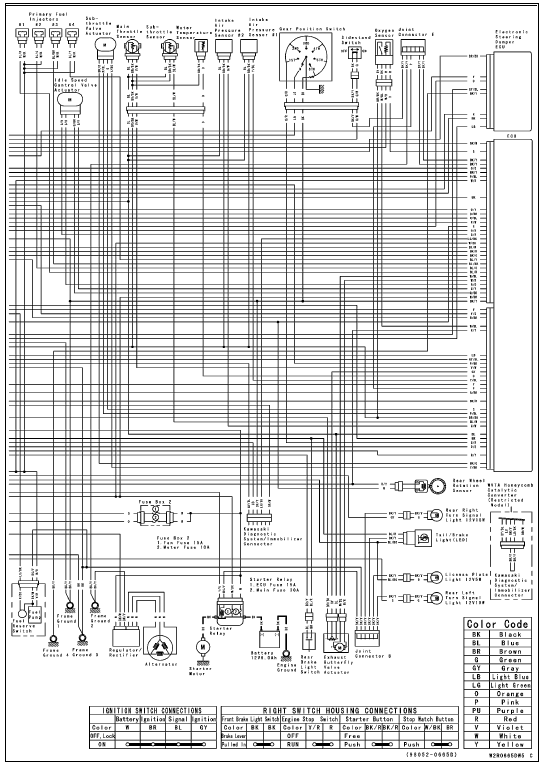

ZX1000JD

Wiring Diagram (Other than US, CA and CAL without KIBS Models)


Wiring Diagram (Other than US, CA and CAL without KIBS Models)


Wiring Diagram (US, CA and CAL with KIBS Models)
ZX1000KC ZX1000KD ...

Wiring Diagram (Other than US, CA and CAL with KIBS Models)
ZX1000KC ZX1000KD ...
