Kawasaki Ninja Service Manual: Thermostat Removal

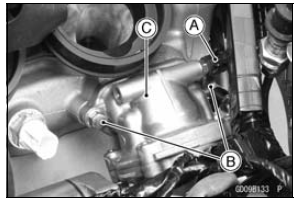

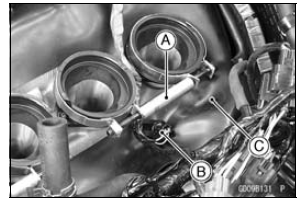

Thermostat

...

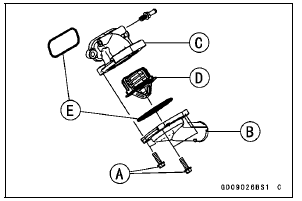

Thermostat Installation

Replace the O-rings [A] with new ones, and apply grease to them. Assemble: O-rings Thermostat Housing [B] Thermostat [C] Thermostat Cap [D] Install the thermostat [A] in the hous ...

Other materials:

Fuse Box Fuse Removal
Remove the left upper inner fairing (see Upper Inner Fairing Removal in the Frame chapter). Unlock the hook [A] to take off the fuse box 1 [B]. Unlock the hook [C] to lift up the lid. Pull the fuses [A] straight out of the fuse box 1 with needle nose pliers. Fuse Box 2 ...

Clutch Plate Warp Inspection
Place each friction plate or steel plate on a surface plate and measure the gap between the surface plate [A] and each friction plate or steel plate [B] with a thickness gauge [C]. The gap is the amount of friction or steel plate warp. If any plate is warped over the service limit, repla ...

Terminal Numbers of ECU Connectors
1. Subthrottle Valve Actuator: Y/BK 2. Subthrottle Valve Actuator: BK/O 3. Unused 4. Front Wheel Rotation Sensor Signal: G/Y 5. Unused 6. Starter Lockout Switch: R/G 7. Gear Position Switch: G/R 8. Crankshaft Sensor (–): BK 9. Power Supply to Sensors: BL 10. Unused 11. Intake Air Pre ...
