Using a hand tester, check to see that only the connections shown in the table have continuity.

Special Tool - Hand Tester: 57001-1394

For the switch housings and the ignition switch, refer to the tables in the Wiring Diagram.

If the switch has an open or short, repair it or replace it with a new one.

Rear Brake Light Switch Connections

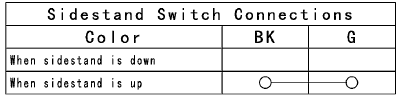

Sidestand Switch Connections

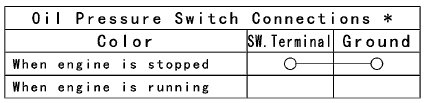

Oil Pressure Switch Connections*

*: Engine lubrication system is in good condition.

Switches and Sensors

Brake Light Timing Inspection Refer to the Brake Light Switch Operation Inspection in the Periodic Maintenance chapter. Brake Light Timing Adjustment Refer to the Brake Light Switch Operation Ins ...

Water Temperature Sensor Inspection

Remove the water temperature sensor (see Water Temperature Sensor Removal/Installation in the Fuel System (DFI) chapter). Suspend the sensor [A] in a container of coolant so that the temper ...
