Kawasaki Ninja Service Manual: Starter Clutch Inspection

Kawasaki Ninja Service Manual / Crankshaft/Transmission / Starter Clutch / Starter Clutch Inspection

If the starter clutch does not operate as it should or if it makes noise, go to the next step.

Starter Clutch Inspection


If there is any worn or damaged part, replace it.

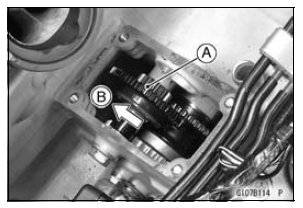

Examine the drive gear [C] as well. Replace the clutch gear if it is worn or damaged.

Starter Clutch Inspection


Starter Clutch Assembly
Install the one-way clutch [A] to the driven gear. Face the circlip side of the one-way clutch to inside. Install the new snap ring [B] to the one-way clutch. Install the drive gear [C] wh ...
