Kawasaki Ninja Service Manual: Rear Wheel Rotation Sensor Removal

Kawasaki Ninja Service Manual / Brakes / KIBS (Equipped Models) / Rear Wheel Rotation Sensor Removal

NOTICE

The wheel rotation sensor should be handled carefully, never struck sharply, as with a hammer, or allowed to fall on a hard surface since the wheel rotation sensor is precision made. Be careful not to get water or mud on the wheel rotation sensor.

Do not try to disassemble or repair the wheel rotation sensor.

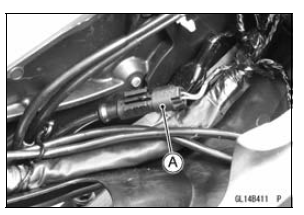

Remove: Fuel Tank (see Fuel Tank Removal in the Fuel System (DFI) chapter) Connector [A] (Disconnect)

Rear Wheel Rotation Sensor Removal

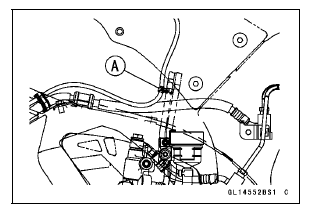

Clear the sensor lead from the clamp [A].

Rear Wheel Rotation Sensor Removal

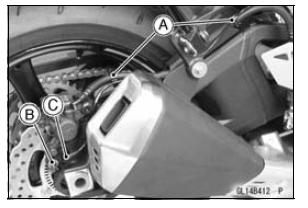

Clear the sensor lead from the clamps [A].
Remove: Bolt [B] Rear Wheel Rotation Sensor [C]

Rear Wheel Rotation Sensor Removal

Front Wheel Rotation Sensor Removal

NOTICE The wheel rotation sensor should be handled carefully, never struck sharply, as with a hammer, or allowed to fall on a hard surface since the wheel rotation sensor is precision made. Be car ...

Rear Wheel Rotation Sensor Installation

Installation is the reverse of removal. Route the lead correctly (see Cable, Wire, and Hose Routing section in the Appendix chapter). ...
