Kawasaki Ninja Service Manual: Piston Removal

Kawasaki Ninja Service Manual / Crankshaft/Transmission / Pistons / Piston Removal

NOTICE

Discard the connecting rod bolts and nuts. To prevent damage to the crankpin surfaces, do not allow the connecting rod bolts to bump against the crankpins.

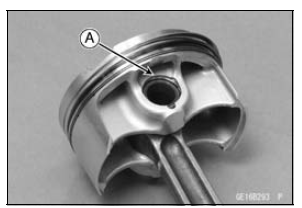

Piston Removal

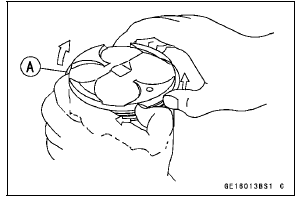

Piston Removal

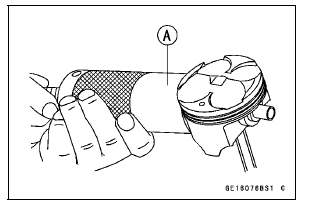

Piston Removal


Pistons
...

Piston Installation
Apply molybdenum disulfide oil solution to the oil ring expander, and install the oil ring expander [A] in the bottom piston ring groove so the ends [B] not butt together Applymolybdenum disu ...
