Kawasaki Ninja Service Manual: Oil Pump Drive Gear Shaft Removal

Kawasaki Ninja Service Manual / Engine Lubrication System / Oil Pump / Oil Pump Drive Gear Shaft Removal

Special Tool - Outside Circlip Pliers: 57001-144

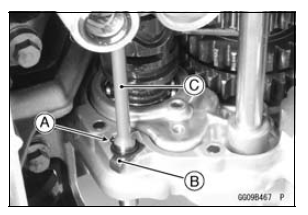

Oil Pump Drive Gear Shaft Removal


Oil Pump Drive Gear Installation
Install is the reverse of removal. Note the following. First, engage the oil pump chain [A] to the gears, and then install the oil pump drive gear [B]. Turn the “OUT” mark [C] to outside. ...

Oil Pump Drive Gear Shaft Installation
Apply molybdenum disulfide grease [A] to the oil pump drive gear shaft. Apply molybdenum disulfide oil solution to the followings. Transmission Case [B] Crankcase [C] Install the oil pu ...

Other materials:

US, CA and CAL Models
1. Hold the water hose [A]. Insert the tab into the slot. 2. Hold the water hose [B]. Insert the tab into the slot. 3. Water Hose Fitting on Cylinder Head 4. Heat Insulation Rubber Plate 5. Run the crankshaft sensor lead and the oil pressure switch lead into the slot, and hook the slot on ...

Cam Wear Inspection
Remove the camshafts (see Camshaft Removal). Measure the height [A] of each cam with a micrometer. If the cams are worn down past the service limit, replace the camshaft. Cam Height Standard: Exhaust 35.043 35.157 mm (1.3796 1.3841 in.) Intake 38.243 38.357 mm (1.5056 1.5101 in. ...

Fuel Hose Inspection (fuel leak, damage, installation condition)
If the motorcycle is not properly handled, the high pressure inside the fuel line can cause fuel to leak [A] or the hose to burst. Remove the fuel tank (see Fuel Tank Removal in the Fuel System (DFI) chapter) and check the fuel hoses. Replace the fuel hose if any fraying, cracks [B] or ...
