Remove: Air Cleaner Housing (see Air Cleaner Housing Removal in the Fuel System (DFI) chapter) Right Lower Fairing (see Lower Fairing Removal in the Frame chapter)
Loosen the nuts [A], and slide the lower end of the clutch cable to give the cable plenty of play.

Cable Removal

Screw in the adjuster [A].

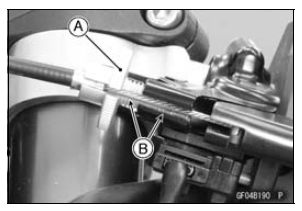

Line up the slots [B] in the clutch lever and adjuster, and then free the cable from the lever.
Free the clutch inner cable tip from the clutch release lever.
Remove the clutch cable.

Cable Removal

Clutch Lever and Cable

Clutch Lever Free Play Inspection Refer to the Clutch Operation Inspection in the Periodic Maintenance chapter. Clutch Lever Free Play Adjustment Refer to the Clutch Operation Inspection in the ...

Cable Installation

Run the clutch cable correctly (see Cable, Wire, and Hose Routing section in the Appendix chapter). Adjust the clutch cable (see Clutch Operation Inspection in the Periodic Maintenance chapte ...
