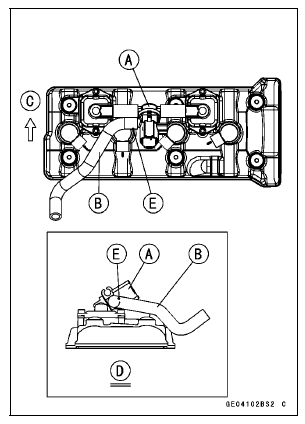

Front [C] Left Side View [D] White Paint [E]

Air Switching Valve Operation Test
Air Switching Valve Unit Test
Clean Air System Hose Inspection
If they are not, correct them. Replace them if they are damaged.
Air Switching Valve RemovalKIBS Hydraulic Unit Terminal Names
1. Ground: BK
2. CAN Communication Line (High): GY/BL
3. Front Wheel Rotation Sensor Signal Input: Y
4. Power Supply: BR/W
5. KIBS Kawasaki Self-Daignosis System Terminal: P
6. Front and Rear Brake Light Switch Signal: BL/R
7. Unused
8. Front Wheel Rotation Sensor Signal Output: G/Y
9. P ...
Coolant Reserve Tank Installation
Install the following to the coolant reserve tank [A].
Pad [B]
Gasket [C]
Cap [D]
Collar [E]
Install the coolant reserve tank and tighten the bolt [F].
Run the hoses correctly (see Cable,Wire, and Hose Routing
section in the Appendix chapter).
Fill the coolant reserve tank with ...
Balancer Installation
Position the crankshaft at #2, 3 positions TDC or at #1, 4
positions TDC.
Install the balancer assembly as follows.
Align the punch mark [A] on the weight and the projection
[B] on the crankcase.
Engage the balancer gear and the crankshaft gear.
Insert the balancer shaft until it is bot ...
